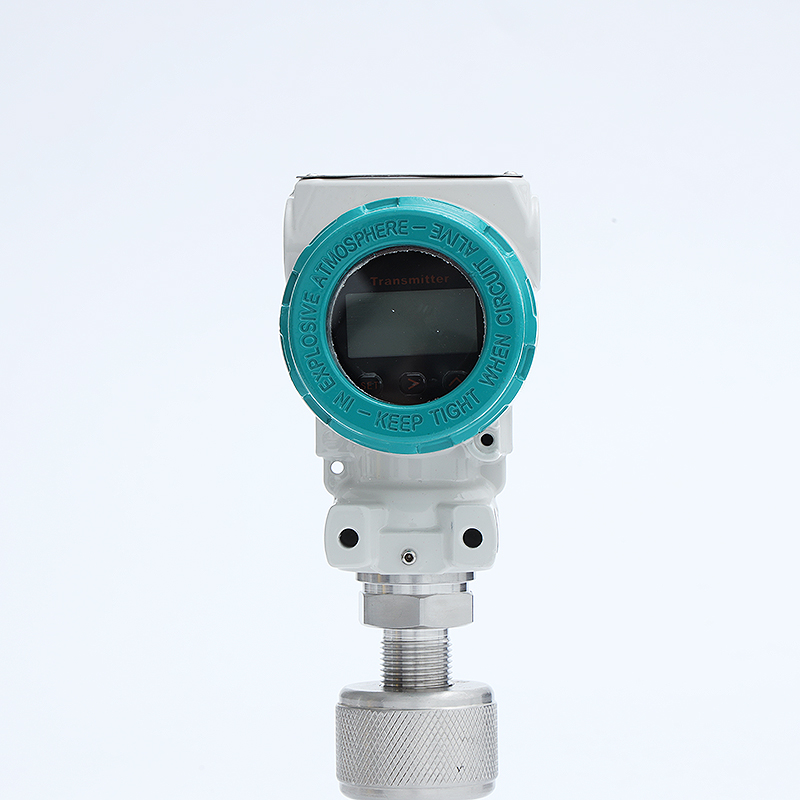

WH-3051P Pressure transmitter

WH-3051PPressure transmitter

• The long-term stability of full degree and zero position is 0.2% FS /year. The temperature drift is less than 0.2% FS in the compensation temperature range of 0 ~ 70 °C.
  Less than 0.5% FS over the entire allowable operating temperature range;
• Reverse protection, current limiting protection circuit;
  During installation, the positive and negative electrodes are connected in reverse, which will not damage the transmitter.
  When abnormal, the transmitter will automatically limit the current within 35mA.
• Solid -state structure, no moving parts, high reliability, and long service life;
• For wind pressure, water pressure, and oil pressure, high accuracy measurement can be performed without being affected by the measured media state.
• Easy to install, simple structure, and durable;

Industrial Automation:

Pressure transmitter plays an important role in industrial automation to control and monitor the pressure of various industrial equipment, such as compressors, pumps, valves and so on.

They can monitor the operating status of the equipment in real time, thereby improving the efficiency and safety of the equipment.

Petrochemistry :

In the petrochemical industry, pressure transmitter is widely used in various links, such as oil and gas transmission, storage, processing and so on.

They can monitor pressure in pipes and vessels in real time to ensure the stability and safety of the production process.

Power industry:

In the electric power industry, pressure transmitter is often used in the steam turbine control system.

Used to monitor and control turbine outlet pressure, temperature and flow parameters, to prevent the turbine in operation of overload or improper control problems.
