WH-801 Series Pressure Transmitter

FEATURES

◆ Have Wide Range-0.1~0~100MPa made to order

◆ A variety of options for Industry standard signal

◆ Many modes of electrical connection

◆Multiple pressure measurement connection methods

◆ Simple shape design, cost-effective

APPLICATIONS

Mechanicalengineering application, Servomechanism and Hydraulic pneumatic industry
Measurementof pipe pressure
Food, medicine, brewing and other processing industries
Monitoring and control in petrochemical, environmental protection and othergeneral industrial processes

Pressure core	Diffused silicon, Strain, Sapphire
Output signal	4-20mA,0-5V,0-10V,RS485(or customized)
Resolution	0.5%FS; 0.2%FS
Power supply	24VDC ( 12-36VDC )
Working temperature	20 ~ 85℃
Ingress protection	IP65

Pressure Range	-0.1~0~100MPa(Can be customized)
Electrical connection	Hersman type, Straight line type, Aviation plug type, etc.
Long-term stability	±0.1% FS/year
Shell material	304, 316L, Teflon ( or customized )
Temperature Compensation	-10 ~ 70℃

Overload pressure

200% Pressure Range

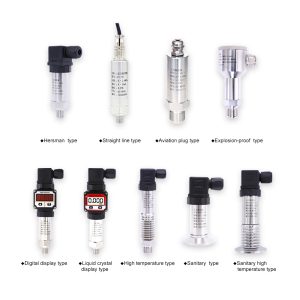

Models	Transmitter type
WH-801H	Hersman type	WH-801D	Display type
WH-801L	Straight line type	WH-801C	Liquid crystal display type
WH-801A	Aviation plug type	WH-801S	Sanitary type
WH-801P	Explosion-proof type	WH-801T	High temperature type
		WH-801ST	Sanitary high temperature type
